Aluminium Corrugated Sheet
For functional as well as aesthetic reasons, aluminium
sheets are the most preferred material from simple
houses to more complex industrial sheds and
warehouses. It is non-combustible, non-flammable
metal and resists fire. It also resists corrosion because
of the thin hard aluminium-oxide coating.
Length : 8’, 10’, 12’
Width : 32”
Thickness : 0.4mm, 0.5mm, 0.7mm
Aluminium Profile Sheet
Aluminium Zinc coated steel profile sheets 0.7 to 0.9mm.
thick as per ASTM A792 for Aluminium Zinc - different grades
can be supplied on request.
Aluminium profiled sheet is 0.7mm.up to 0.9mm. thick Alloy
A3105 - H16 Temper from tension leveled coils - different Alloy
can be supplied on request.
Yield Strength 170 N/mm2 (Aluminium)
Yield Strength 250 N/mm2 (Steel)
Size: 1025mm x 3000mm x 0.7mm, 0.8mm, 0.9mm
G.I. Corrugated Sheet
A purpose-oriented corrugated sheet made of selected
quality Galvanized Iron (G.I.) with excellent features
for roofing and side clading. Packed in sea-worthy
envelopes.
Length : 6’, 6.5’, 8’, 10’, 12’
Width : 32”, 39”
Thickness : 28, 30, 32, 34, 35, 36 Gauge
Complete fixing accessories are also available.
G.I. Profile Sheet
G.I. steel profiled sheets 0.7 to 0.9mm. thick as per ASTM A656
for GI - different grades can be supplied on request.
Painting is baked regular modified enamel polyester, with 5
micron primer and 20 micron coat on the weathering side and
5/7 micron primer on the reverse w PVDF, Silicon, Modified
Polyester, Platisol & ARS coating on request is applicable.
Size: 1025mm x 3000mm x 0.7mm, 0.8mm, 0.9mm
Colour: Red, White Coated
PVC Corrugated Sheet
Attractive translucent medium available in elegant
colours to beautify your surroundings. Made of
fine plastics, it can be used in interior and exterior
decoration, garden houses, pavilions etc.
Length : 6’, 8’, 10’, 12’
Width : 30”
Thickness : 0.7mm
Colors : White,
Transparent White,
Green, Transparent Green,
Blue, Transparent Blue,
Transparent Red,
Transparent Yellow

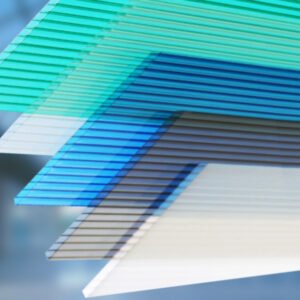

Twin Wall Polycarbonate Sheet
Twin Wall Polycarbonate sheets are high
performance, tough and safe wall glazing material.
These comprises thin rectangular wall tunnel
structure and offers high impact strength , light
transmission all weather compatibility with
excellent thermal insulation properties. Due to
its light transmission, profile structure, ability to
withstand extreme temperatures and long life
these are extremely ideal for new and replacement
greenhouse glazing and other similar uses where
external lighting is used for internal lighting
purposes.
Length : 5.8mtr, 11.8mtr
Width : 2.1mtr
Thickness : 4mm, 6mm, 10mm.
Colors : Clear, White, Green, Blue, Brown.
